Basketball – A Game of Geometry

In a previous post, I described the most optimal offensive strategy for the Knicks based on developing relevant joint probability density functions.

In this post, I attempt a solution to the following problem:

Given 5 players on the court, how can one determine (x,y) coordinates for each player such that the spacing / distance between each player is maximized. Thus, mathematically providing a solution in which the arrangement of these 5 players is optimal from an offensive strategy standpoint. The idea is that such an arrangement of these 5 players will always stretch the defense to the maximum.

The problem is then stated as follows. Let (x_i, y_i) be the x and y coordinates of player i on the court. We wish to solve:

optimproblem

Problems of this type are known as multi-objective optimization problems, and in general are quite difficult to solve. Note that in setting up the coordinate system for this problem, we have for convenience placed the basket at (x,y) = (0,0), i.e., at the origin.

Now, for solving this problem we used the Non-dominated Sorting Genetic Algorithm-II (NSGA-II) in the MCO package in R.

In general, what I found were that there are many possible solutions to this problem, all of which are Pareto optimal. Here are some of these results.

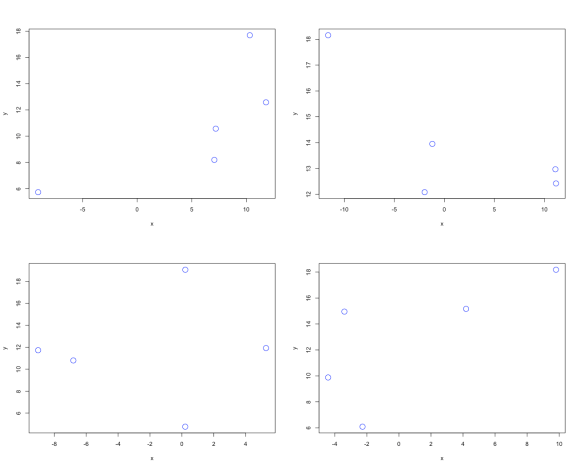

xyplot1

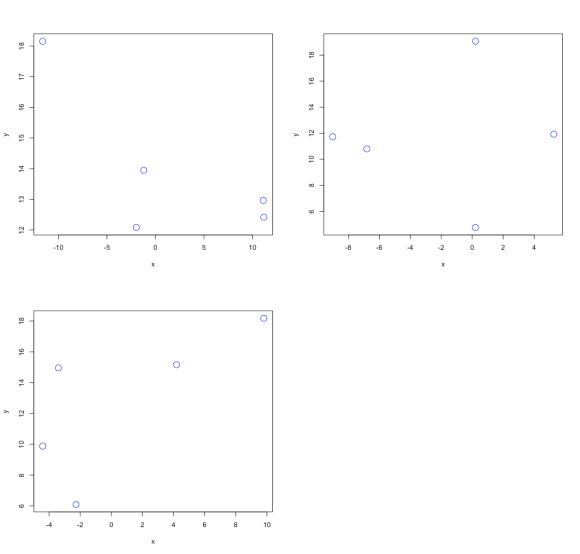

xyplot2

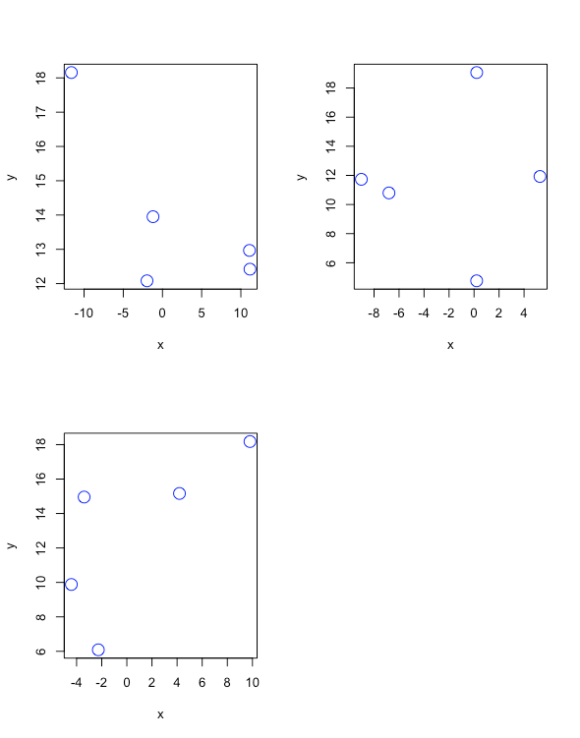

xyplot3

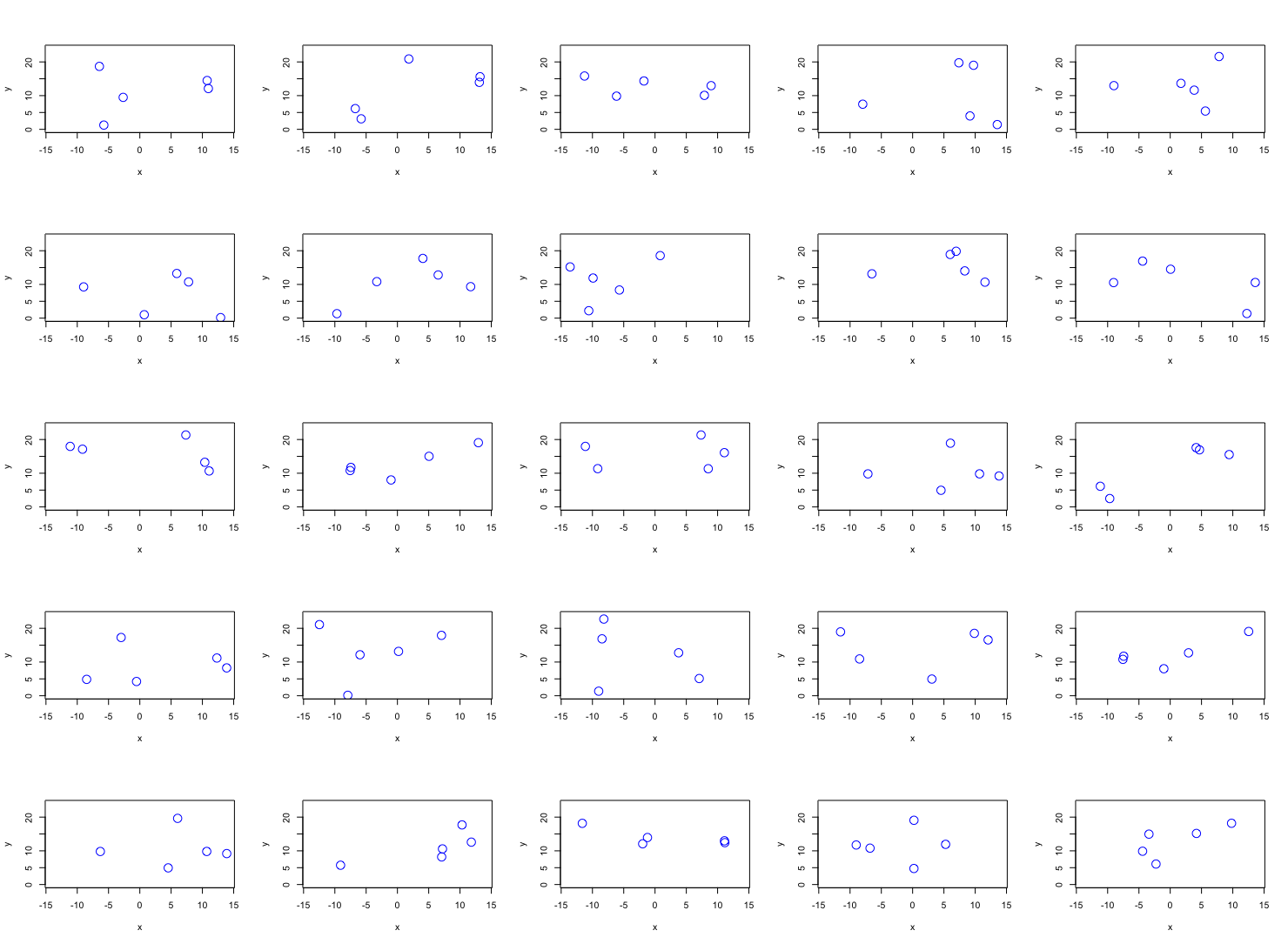

Here are some more plots of of player coordinates clearly showing the origin point (which as mentioned earlier, is the location of the basket):

Each plot above shows the x-y coordinates of players on the floor such that the distance between them is a maximum. Thus, these are some possible configurations of 5 players on the floor where the defense of the opposing team would be stretched to a maximum. What is even more interesting is that in each solution displayed above, and indeed, each numerical solution we found that is not displayed here, there is at least one triangle formation. It can therefore be said that the triangle offense is amongst the most optimal offensive strategies that produces maximum spacing of offensive players while simultaneously stretching the defense to a maximum as well. Here is more on the unpredictability of the triangle offense and its structure.

Based on these coordinates, we obtained the following distance matrices showing the maximum / optimal possible distance between player i and player j:

distances

Above, we show 5 possible distance matrices out of the several generated for brevity. So, one can see that looking at the fifth matrix for example, players are at a maximum and optimal distance from each other if for example the distance between player 1 and 2 is 9.96 feet, while the distance between player 3 and 4 is 18.703 feet, while the distance between player 4 and 5 is 4.96 feet, and so on.
